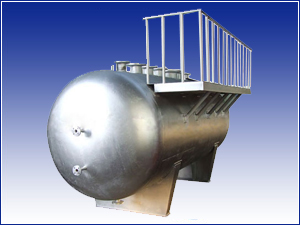

Steam accumulator


Steam accumulator is the use of water storage capacity of the heat storage, and in case of need and the saturated steam is released form, in order to reduce the thermal load fluctuations, thus exerting its peak load shifting balance absorption heat load of the unique features of the equipment. Heat load fluctuation of the heating system, intermittent thermal energy system, need to reserve a certain amount of steam for emergency needs of the heating system, the instant of time required large amounts of steam heating system can be applied to the steam accumulator. Steam accumulator is put into operation, to ensure the boiler at the optimum combustion conditions on the stable operation of. In the industrial boiler system if the use of steam occurs frequently in large fluctuation, will not only cause the boiler gas pressure, water level fluctuation, the boiler operation difficulty, will also cause the boiler combustion efficiency. In this case the application of regenerator can effectively stabilize the boiler load, improve the boiler operating conditions, the boiler efficiency.

Commonly used steam accumulator series table

Model

Nominal volumeM3

Diameter(mm)

Overall length(mm)

Nominal pressure(Mpa)

Total heat storage(K call)

The maximum storage volume T ( steam) cycle

Product notes

CV6-1.0

6

¦Õ1400

4370

1.0

0.78¡Á106

0.72

CV8-1.0

8

¦Õ1600

4670

1.0

1.04¡Á106

0.96

CV12-1.0

12

¦Õ1800

5220

1.0

1.56¡Á106

1.4

CV16-1.0

16

¦Õ1800

6820

1.0

2.08¡Á106

1.9

CV20-1.0

20

¦Õ2000

7120

1.0

2.79¡Á106

2.5

CV25-1.0

25

¦Õ2000

8300

1.0

3.48¡Á106

3.2

CV32-1.0

32

¦Õ2200

9020

1.0

4.46¡Á106

4.1

CV40-1.0

40

¦Õ2400

6520

1.0

5.94¡Á106

5.5

CV50-1.0

50

¦Õ2600

10020

1.0

7.74¡Á106

6.9

CV65-1.0

65

¦Õ2800

11360

1.0

9.66¡Á106

8.9

CV80-1.0

80

¦Õ3000

12220

1.0

12.6¡Á106

11.6

CV100-1.0

100

¦Õ3000

15600

1.0

14.8¡Á106

13.7

CV130-1.0

130

¦Õ3200

17300

1.0

20.5¡Á106

18.9

CV150-1.4

150

¦Õ3000

21670

1.4

34.5¡Á106

30.5

CV150-1.4

150

¦Õ3400

17452

1.4

34.5¡Á106

30.5

CV180-1.0

180

¦Õ3400

22340

1.0

28.4¡Á106

26.2

CV230-1.0

230

¦Õ3600

23860

1.0

37.6¡Á106

34.7

CV300-1.0

300

¦Õ3800

23520

1.0

49.0¡Á106

45.2

CV400-1.0

400

¦Õ4000

33040

1.0

66.8¡Á106

61.7
