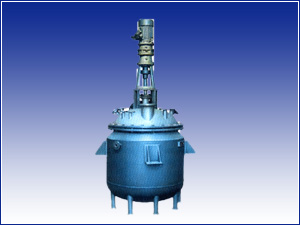

Electric heating reactor

The body and parts in contact with the material of the electric heating stainless steel reactor manufactured by our factory all adopt 1 Cr18Nl19Ti stainlesss teel plate . Specification range is 50 L-50000 L. Because production process,operation conditions of the customer are not the same, there are normally anchortype, paddle type, worm type, propelling type or frame type of agitation form. There is heat transferring oil in the jacket, and the oil is heated by electrothermal bar. There are oil inlet, oil discharge, oil overflow, vent, temperature measurement for electrothermal bar, and the other adapter holes on the jacket.

Nominal capacity L

Actual capacity L

Electric capacity L

Jacket capacity L

Inner reactor size
mm

Outer reactor size       mm

Reducer model

Motor power n/kw

Agitation speed n/min

50
61
32kw
95
400
600
m3
1450/0.6
60-80
100
120
62kw
120
500
700
m3
1450/0.6
60-80
200
247
63kw
200
600
800
m3
1450/1.5
60-80
300
35.5
63kw
250
700
900
m3
1450/1.5
60-80
500
589
94kw
290
900
1100
m3
1450/2.2
60-80
1000
121.5
124kw
560
1200
1400
m3
1450/4
60-80
2000
2244
155kw
750
1400
1600
m3
1450/4
60-80
3000
3201
155kw
1015
1600
1800
m3
1450/7.5
60-80
4000
4020
155kw
1226
1600
1800
m3
1450/7.5
60-80
5000
5170
185kw
1400
1800
2000
m3
1450/7.5
60-80
