Tubular condenser 1 m2-200 m2

     The tubular condensers produced by our factory,according to the material, they can be classified into three types of carbon steel tubular condenser, stainless steel tubular condenser, carbon steel and stainless steel mixed type tubular condenser; according to the form, they canbe classified into fixed tube plate type, floating head type, U tube heat exchanger; according to the structure, they can be classified into the single tube pass, double tube pass and multi tube pass. The heat transfer area is 0.5-500 m2, which can be customized based on users¡¯ need.

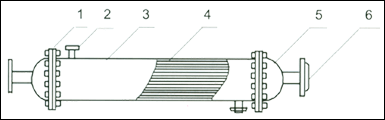

1. Flange 2. Inlet and outlet section tube 3. Shell 4. Tube 5. Head 6. Inlet and outlet pipe

The main technical parameters

Nominal diameter

Tube pass number

Pipe number

 Nominal value/calculated value of heat transfer area

section area of tube channel , flow speed of tube channel m/hr is the flow rate when 0.5 m/SEC

Nominal pressure

The pipe length (m)

Carbon steel tube ¦Õ 25 x2. 5

5000
2000
3000
4000
6000

Stainless steel tube ¦Õ 25 x2

159
I
14
1.5/1.62
2/2.17
3/3.27


0.0044/0.0049
7.92/8.82
0.25
219
I
26
3/3.00
4/4.02
6/6.06
8/8.11

0.0082/0.0090
14.76/16.20
0.6

II
26
3/3.00
4/4.02
6/6.06
8/8.11

0.0041/0.0045
7.38/8.10
1.0
273
I
44
5/5.08
7/6.18
10/10.26
14/13.72
21/20.63
0.0138/0.0152
24.84/27.36
1.6

II
40
5/4.62
6/6.19
9/9.33
12/12.47
19/18.76
0.0063/0.0069
11.34/12.42
2.5
325
I
60
7/6.93
9/9.28
14/14.00
19/18.71
28/28.13
0.0188/0.0208
33.84/37.44
0.6

II
56
6/6.47
9/8.66
13/13.06
17/17.46
26/26.26
0.0088/0.0097
15.84/17.46
1.0
400
I
119
14/13.74
18/18.41
28/27.76
37/37.10
55/55.8
0.0374/0.0412
67.32/74.16
1.6

II
110
13/12.70
17/17.02
26/25.66
34/34.20
50/51.58
0.0173/0.0190
31.14/34.20
2.5
500
I
185


45/4.15
55/57.68
85/86.74
0.0581/0.0641
104.58/115.38


II
180


40/41.99
55/57.68
85/86.74
0.0283/0.0312
50.94/56.16

600
I
169


60/62.7
85/83.88
125/126.13
0.0845/0.0932
152.10/167.76


II
266


60/62.05
80/82.94
125/14.72
0.0418/0.0461
75.24/82.98

700
I
379


90/88.41
120/118.17
175/177.71
0.0091/0.1313
214.38/236.34


II
358


85/83.51
110/111.62
165/167.86
0.0562/0.0620
101.16/111.60

800
I
511


120/119.20
160/159.16
240/239.60
0.1605/0.1770
288.90/318.60


II
488


115/113.83
150/152.16
230/228.81
0.0767/0.0845
138.06/152.10

900
I
649


150/151.39
200/202.36
305/304.3
0.2039/0.2248
367.02/404.46


II
630


145/146.96
195/196.44
295/295.40
0.0990/0.1091
178.20/196.38

1000
I
805


185/187.78
250/251.00
375/377.45
0.2529/0.2788
455.22/501.84


II
792


185/184.75
245/246.95
370/371.36
0.1244/0.1374
233.92/246.96
